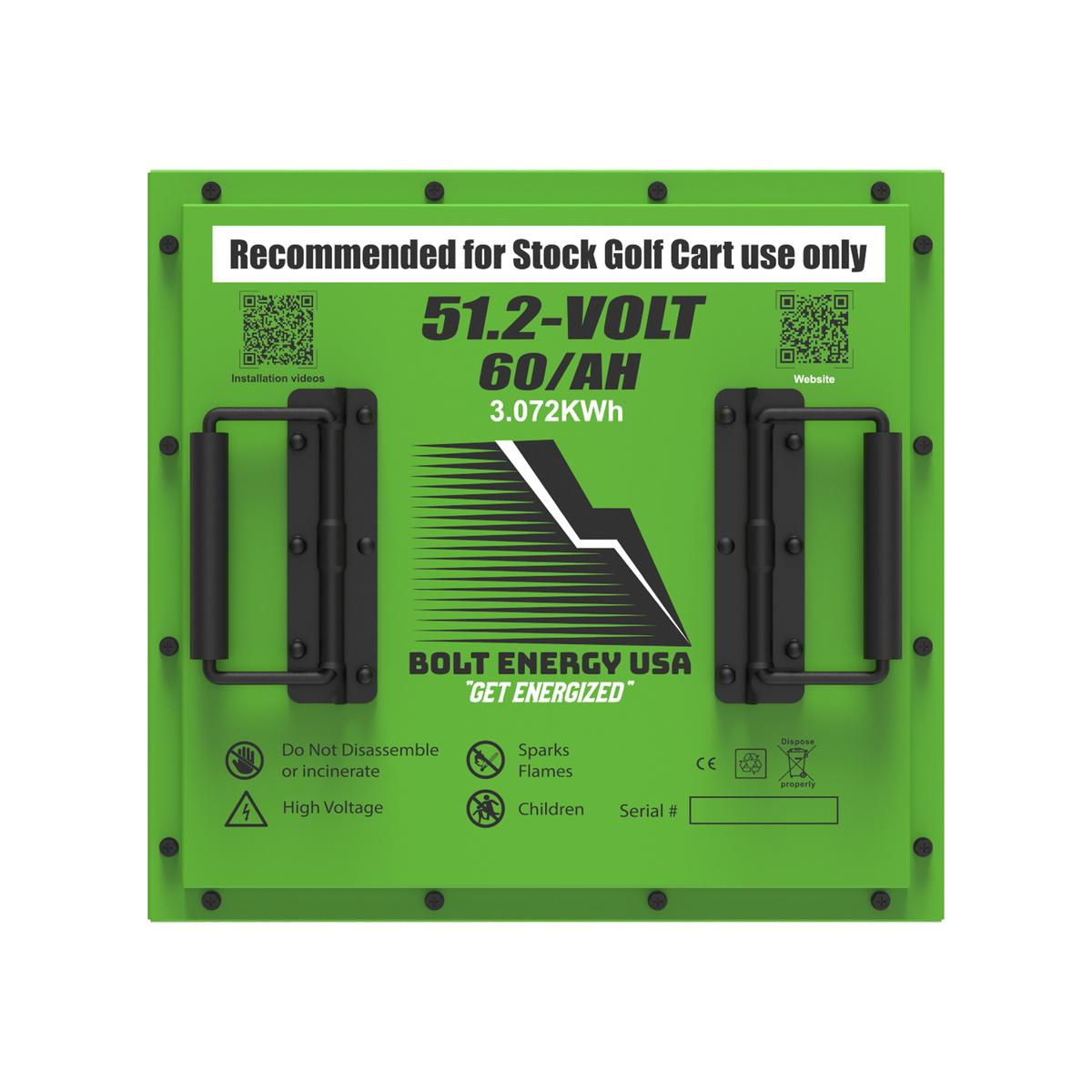

Bolt Energy 51V 60AH Standard Square Accessory Battery Kit

Bolt Energy 51V 60AH Standard Square Accessory Battery Kit
Bolt Energy 51V 60AH Standard Square Accessory Battery Kit
Bolt Energy 51V 60AH Standard Square Accessory Battery Kit
Bolt Energy 51V 60AH Standard Square Accessory Battery Kit
Bolt Energy 51V 60AH Standard Square Accessory Battery Kit
Bolt Energy 51V 60AH Standard Square Accessory Battery Kit
Bolt Energy 51V 60AH Standard Square Accessory Battery Kit
Bolt Energy 51V 60AH Standard Square Accessory Battery Kit
Bolt Energy 51V 60AH Standard Square Accessory Battery Kit
Bolt Energy 51V 60AH Standard Square Accessory Battery Kit
Bolt Energy 51V 60AH Standard Square Accessory Battery Kit

Bolt Energy 51V 60AH Standard Square Accessory Battery Kit

Item # 33-105

In Stock

Freight Type: Non-Standard Plus

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

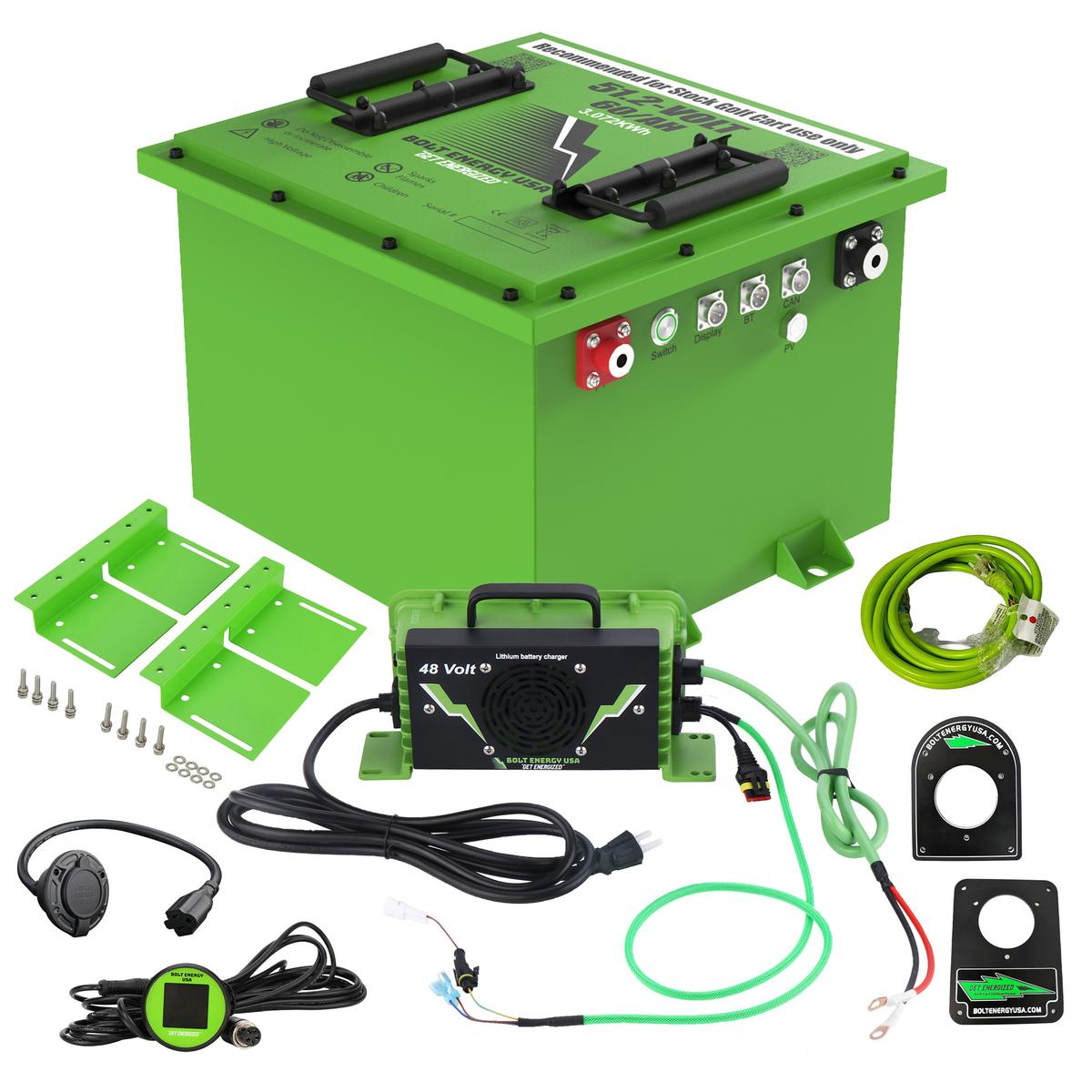

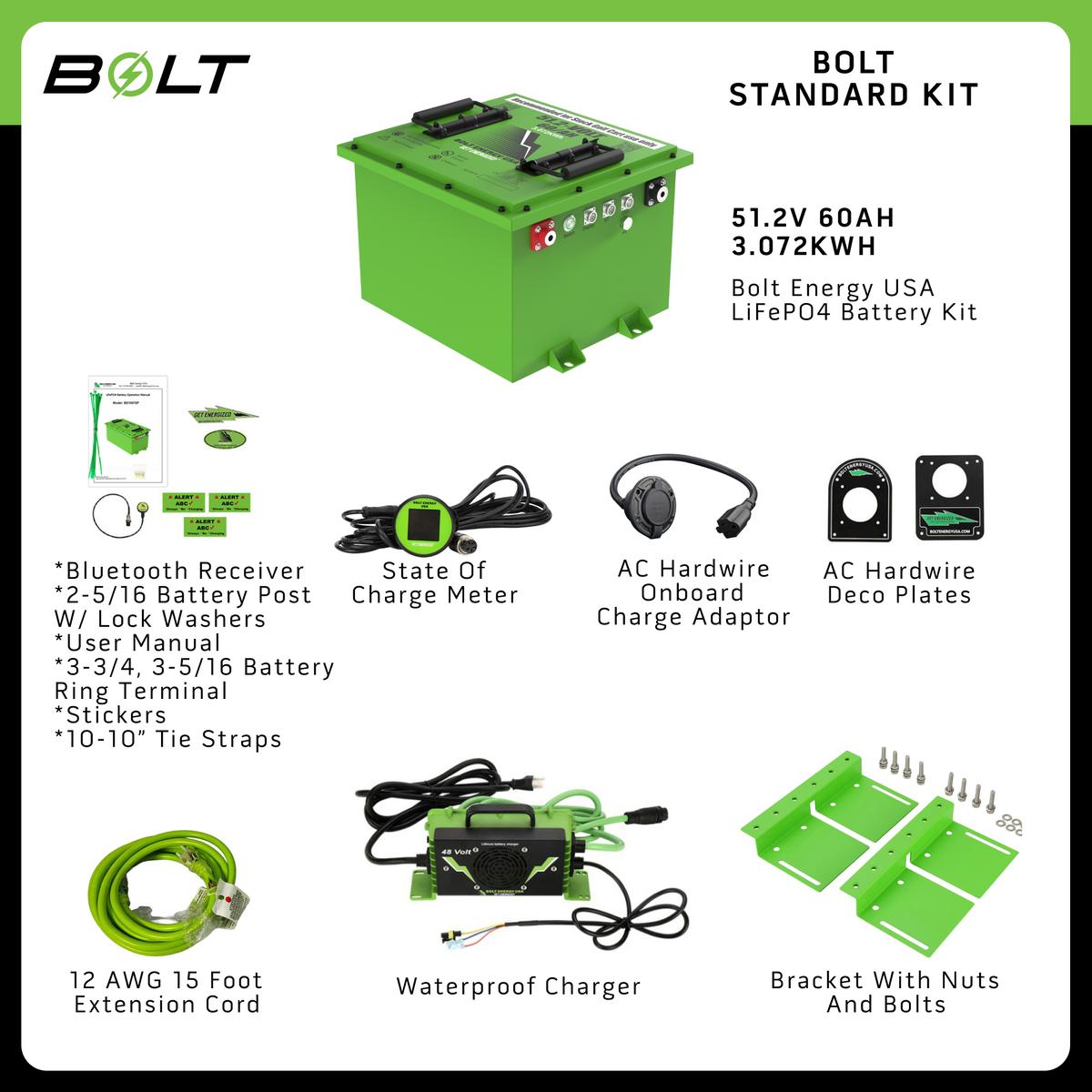

51.2V 60Ah Battery with Standard Kit

Standard Kit Includes:

  • 51.2V 60Ah Battery
  • Bluetooth receiver
  • Smart SOC (State of charge meter)
  • Owner’s manual
  • Six 3/8 battery ring terminal connectors
  • Ten 10? tie straps
  • Bolt Energy USA stickers
  • Waterproof high-speed charger
  • Mounting brackets, Nuts, and bolts
  • AC Hardwire PORT
  • AC hardwire DECO Cover plates
  • 15ft 12 AWG Green lighted extension cord

Electrical Specifications:

  • Nominal Voltage: 51.2V
  • Working Voltage: 43.2 – 58.4V
  • Recommended Voltage: 48.0V – 57.0V
  • Nominal Capacity: 60Ah
  • Energy: 5,376Wh
  • Capacity at 25A: 252 min
  • Efficiency: 0.99
  • Self-Discharge: <3% per Month

Discharge Specifications:

  • Maximum Continuous Discharge Current: 250A
  • Peak Discharge Current: 520A ± 15.6A (30S)
  • BMS Discharge Current Cut-Off:
    • 260 A ± A7.8A (50S)
    • 520A ± 15.6A (30S)
  • BMS Discharge Voltage Cut-Off: 40V
  • Recommended Low Voltage Disconnect: 48.0V
  • BMS Reconnect Voltage: 41.6V
  • Discharge Temperature: -4 to 140°F (-20 to 65°C)

Charge Specifications:

  • Recommended Charge Current: 5 – 52A
  • Maximum Input Current: 350A
  • Charge Current Cut-Off: 375A
  • BMS Charge Voltage Cut-Off: 58.5V
  • Reconnect Voltage: <58.5V
  • Charging Temp. Range: 34°F to 140°F (0-60°C)

Mechanical Specifications:

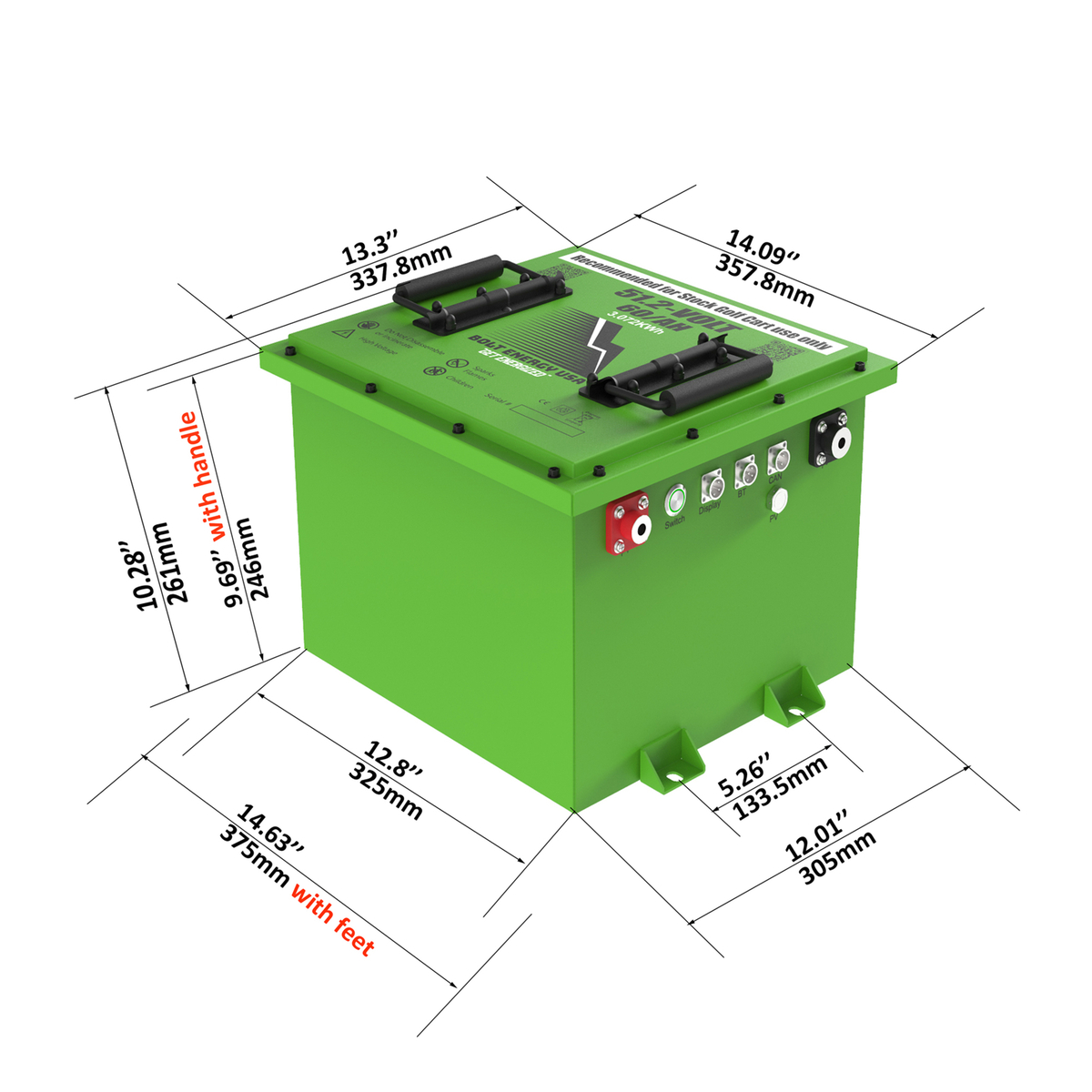

  • Dimensions (L x W x H): 12.8? x 12.01? x 10.28?
  • Weight: 72.75lbs (45.7kg)
  • Terminal Type: M8*1.5*25mm
  • Cell Configuration: 1P16S
  • Case Material: Powder Coated Steel
  • Enclosure Protection: Designed with IP66 Standard
  • Cell Type – Chemistry: Prismatic- LiFePO4

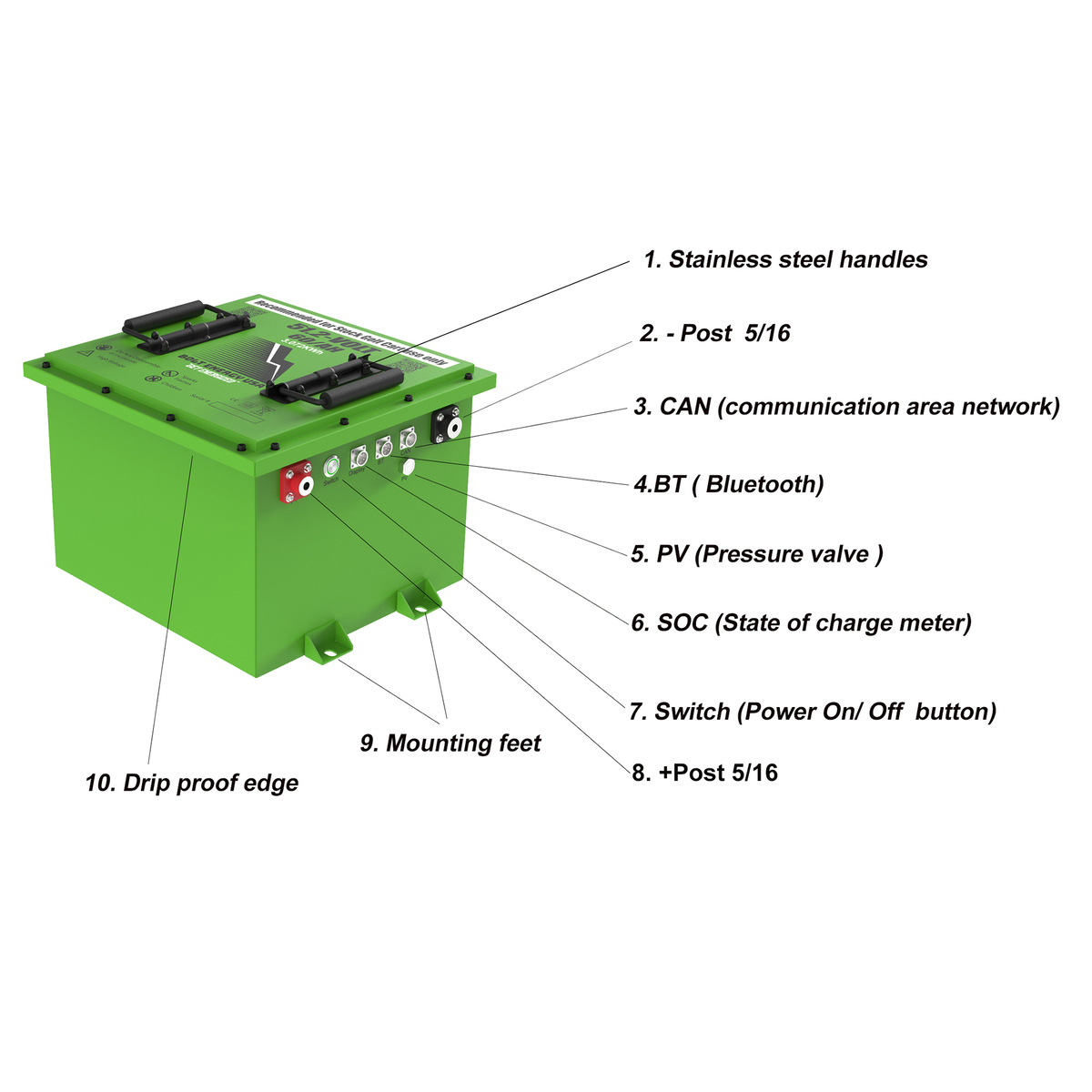

Communication:

  • Bluetooth: Bluetooth receiver
  • CAN: CAN port for testing battery

Make
ADVANCED EV
Voltage
48V
Unit
EA
Make Model Year Power
ADVANCED EV ADVENT ELECTRIC 2022 2024
ICON ICON EV ELECTRIC 2017 2021
ICON ICON EV ELECTRIC 2021 2023
ICON ICON EV ELECTRIC 2024 Current
ICON ICON EV ELECTRIC Current Current
MADJAX ESERIES E4 ELECTRIC Current Current
MADJAX XSERIES X2 ELECTRIC Current Current
MADJAX XSERIES X4 ELECTRIC Current Current
Freight Type
Non-Standard Plus
Brand
Bolt Energy USA
