EZGO TXT 6-Gauge Battery Cable Set (Years 1994.5-2014)
Summary
EZGO TXT 6-Gauge Battery Cable Set (Years 1994.5-2014)Price
$33.95
MSRP: $33.95
- Product Code
- 17-347
Qty
Not Purchasable:
Description
6-gauge black battery cable set for EZGO TXT 94.5-14
Fitment:
- EZGO TXT 1994.5-2014 models
Features:
- 6-gauge wiring - ideal for stock golf carts
- High strand trimmed copper cables
- All cables are black PVC Insulation jacket
- Pre-cut & Professional Crimped with 5/16” Ring Terminals
Torque Specs:
- 5/16" studs: 8–10 ft-lb
- 1/4" studs: 6–7 ft-lb
- Always Check OEM Spec: Do not over torque which avoids cracking the post and ruining the battery
- After a week or two inspect for any wear or insulation rubbed off and retorque cables
Installation Order:
- Install all series jumpers first (battery to battery)
- Install controller/motor cables
- Positive (+) pack lead on first, negative (–) last
- Apply dielectric grease externally after tightening
Tech Tips:
- Key Off & Charger Unplugged
- Ensure Run/Tow switch is in the TOW position
- Disconnect the negative battery first
- Reconnect the positive first
- Take picture before starting as a reference during installation
- Use Insulated Tools, Protective Eye Wear, Gloves, Remove any jewelry
- Do not mix gauge size cables

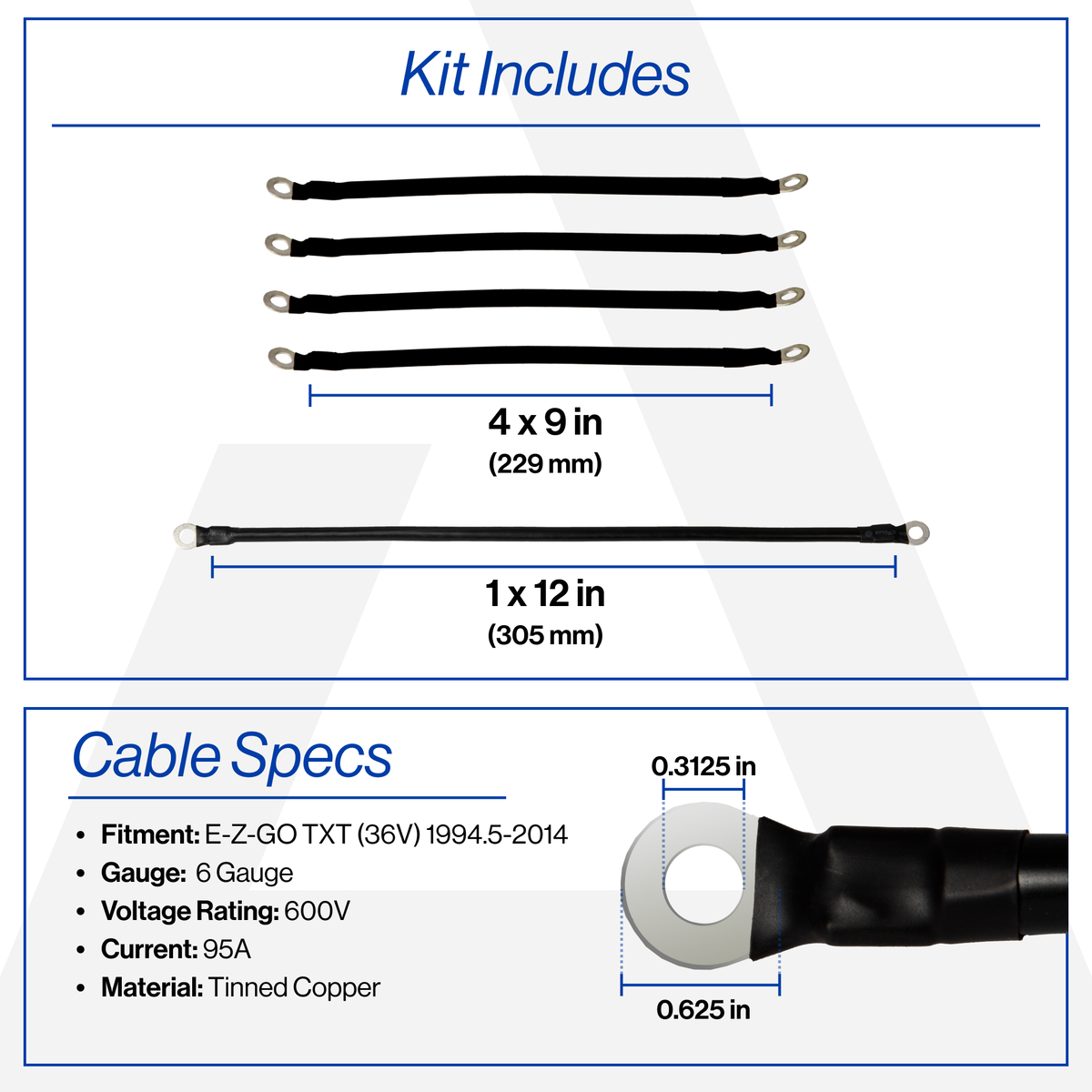

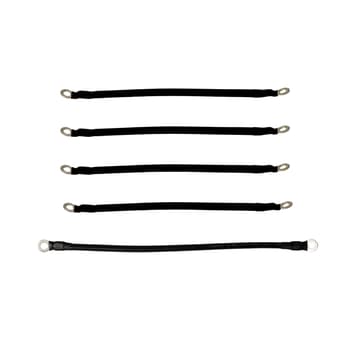

Set Includes:
- (4) 9” cables – Part# 17-300
- (1) 12” cable – Part# 17-302
