9 Inch 6-Gauge Black Battery Cable
Summary
9 Inch 6-Gauge Black Battery CablePrice
$5.95
MSRP: $5.95
- Product Code
- 17-300
Qty
Not Purchasable:
Description

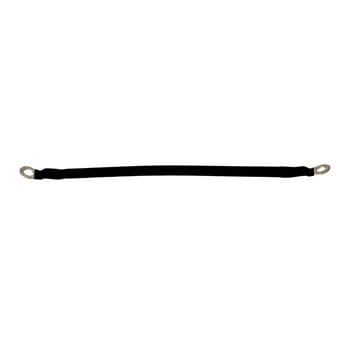

9 Inch 6-gauge black battery cable
Features:
- 9” cable length
- 6-gauge wiring - ideal for stock golf carts

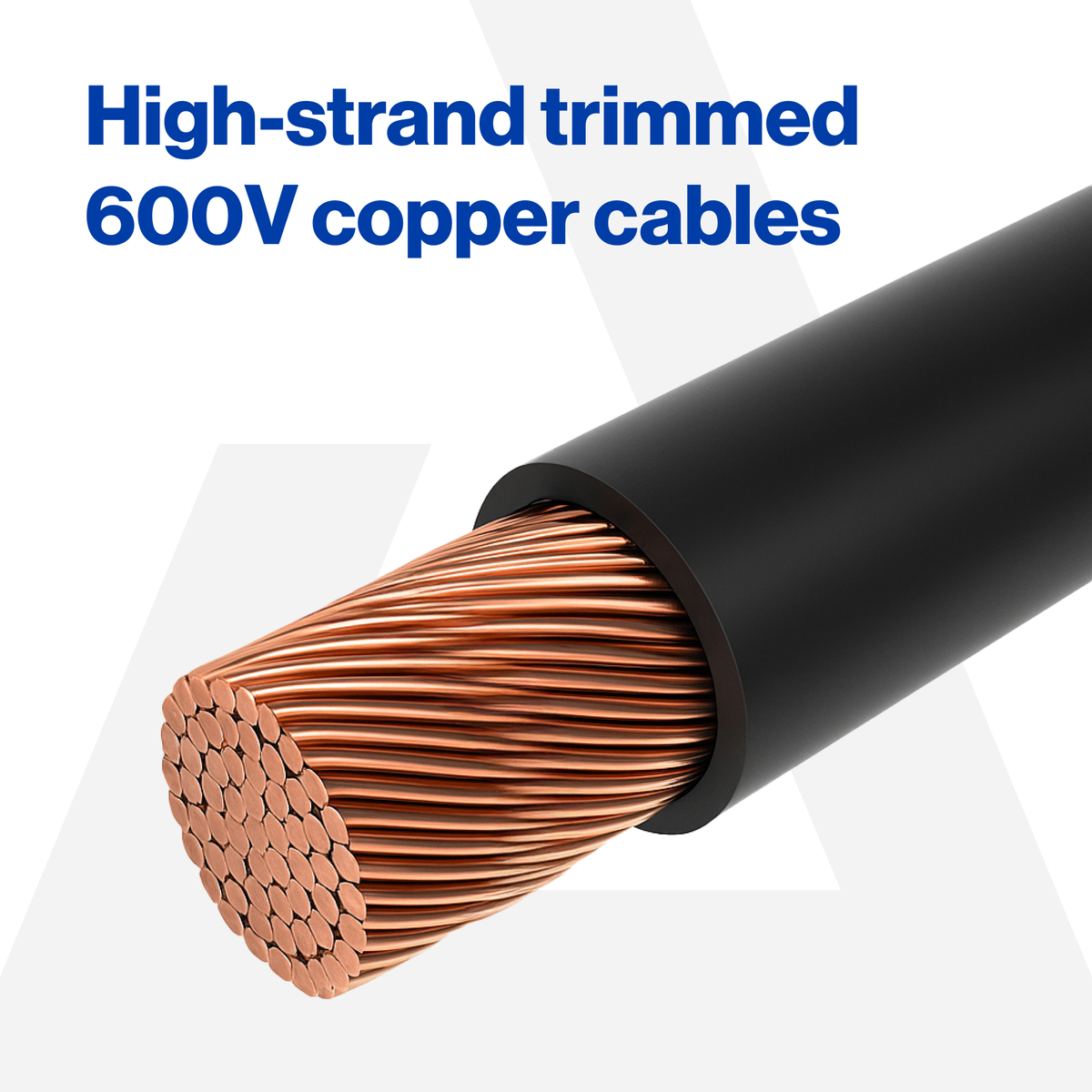

- High strand trimmed copper cables

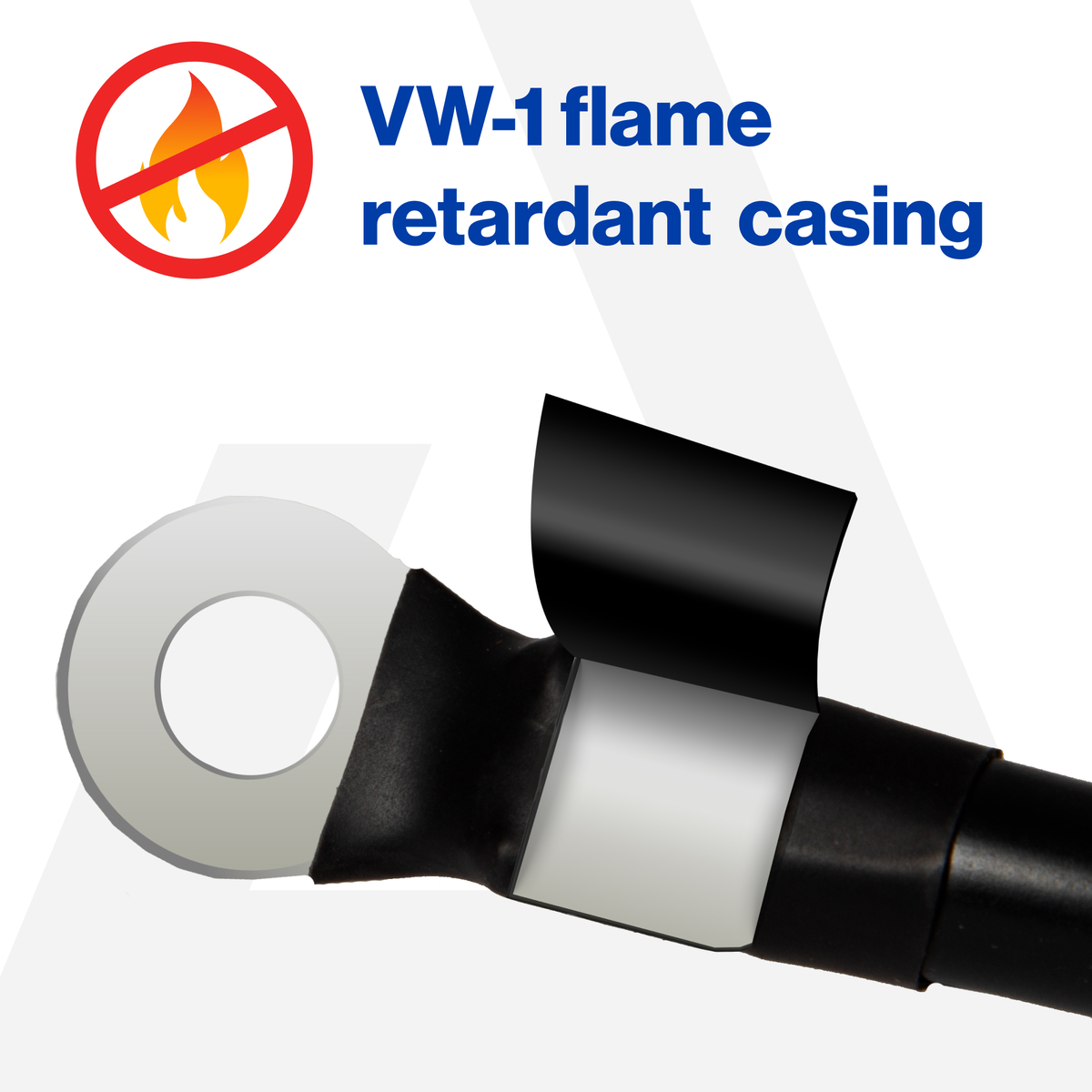

- All cables are black PVC Insulation jacket

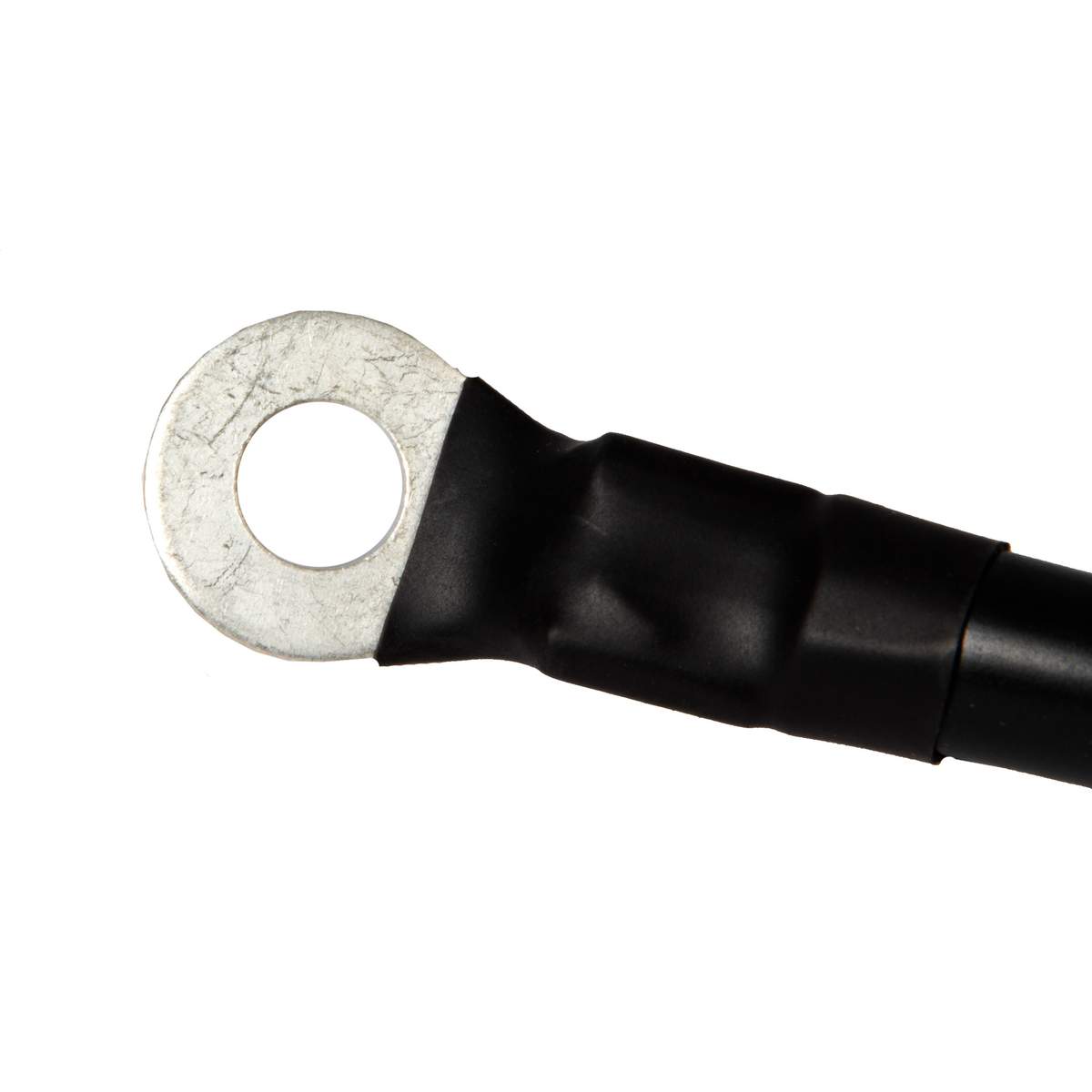

- Pre-cut & Professional Crimped with 5/16” Ring Terminals
Torque Specs:
- 5/16" studs: 8–10 ft-lb
- 1/4" studs: 6–7 ft-lb
- Always Check OEM Spec: Do not over torque which avoids cracking the post and ruining the battery
- After a week or two inspect for any wear or insulation rubbed off and retorque cables
Installation Order:
- Install all series jumpers first (battery to battery)
- Install controller/motor cables
- Positive (+) pack lead on first, negative (–) last
- Apply dielectric grease externally after tightening
Tech Tips:
- Key Off & Charger Unplugged
- Ensure Run/Tow switch is in the TOW position
- Disconnect the negative battery first
- Reconnect the positive first
- Take picture before starting as a reference during installation
- Use Insulated Tools, Protective Eye Wear, Gloves, Remove any jewelry
- Do not mix gauge size cables
